Object Detection model#

This tutorial provides a step-by-step guide — from installation to model training — for the object detection task using a specific example.

To learn more about the object detection task, refer to Object Detection.

In this tutorial, we demonstrate how to train and validate the ATSS model on the publicly available WGISD dataset. For details on how to export, optimize, and deploy the trained model, refer to Deploy & Demo.

To provide a concrete example, all commands in this tutorial use the ATSS model — a medium-sized architecture that offers a good trade-off between accuracy and inference speed.

This process has been tested with the following configuration:

  • Ubuntu 20.04

  • NVIDIA GeForce RTX 3090

  • Intel(R) Core(TM) i9-11900

  • CUDA Toolkit 11.8

Setup virtual environment#

1. You can follow the installation process from a quick start guide to create a universal virtual environment for OpenVINO™ Training Extensions.

2. Activate your virtual environment:

.otx/bin/activate
# or by this line, if you created an environment, using tox
. venv/otx/bin/activate

Dataset preparation#

Note

Currently, we support the following object detection dataset formats:

1. Clone a repository with WGISD dataset.

mkdir data ; cd data
git clone https://github.com/thsant/wgisd.git
cd wgisd
git checkout 6910edc5ae3aae8c20062941b1641821f0c30127

This dataset contains images of grapevines with the annotation for different varieties of grapes.

  • CDY - Chardonnay

  • CFR - Cabernet Franc

  • CSV - Cabernet Sauvignon

  • SVB - Sauvignon Blanc

  • SYH - Syrah

It’s a great example to start with. The model achieves high accuracy right from the beginning of the training due to relatively large and focused objects. Also, these objects are distinguished by a person, so we can check inference results just by looking at images.

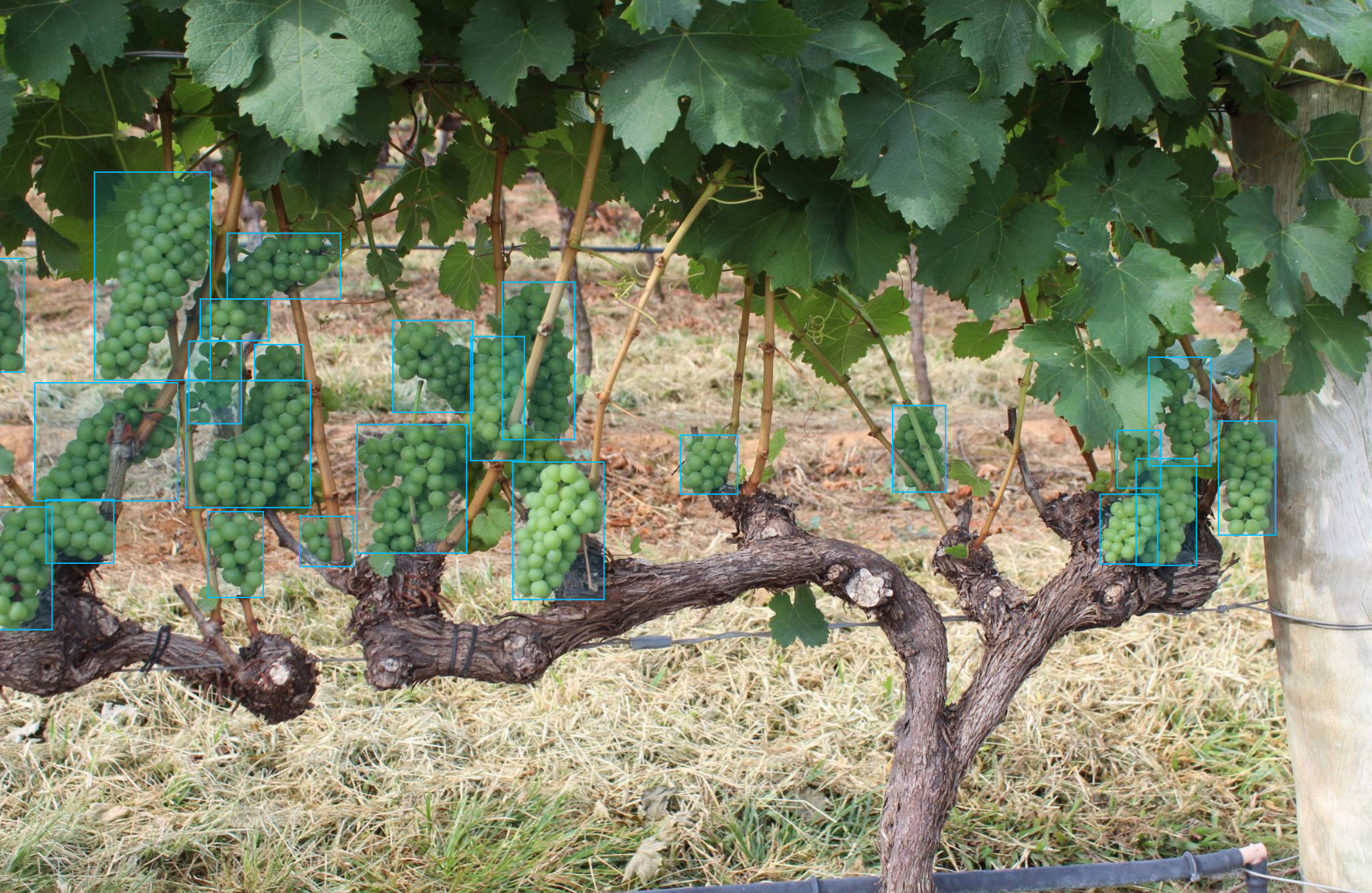

this image uploaded from this `source <https://github.com/thsant/wgisd/blob/master/data/CDY_2015.jpg>`_

2. To run the training using auto-configuration feature, we need to reformat the dataset according to this structure:

wgisd
├── annotations/
    ├── instances_train.json
    ├── instances_val.json
    └── instances_test.json
├──images/
    ├── train
    ├── val
    └── test

We can do that by running these commands:

# format images folder
mv data images

# format annotations folder
mv coco_annotations annotations

# rename annotations to meet *_train.json pattern
mv annotations/train_bbox_instances.json annotations/instances_train.json
mv annotations/test_bbox_instances.json annotations/instances_val.json
cp annotations/instances_val.json annotations/instances_test.json

cd ../..

Training#

1. First of all, you need to choose which object detection model you want to train. The list of supported recipes for object detection is available with the command line below.

Note

The characteristics and detailed comparison of the models could be found in Explanation section.

(otx) ...$ otx find --task DETECTION --pattern atss
┏━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃ Task      ┃ Model Name            ┃ Recipe Path                                                    ┃
┡━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│ DETECTION │ atss_mobilenetv2_tile │ src/otx/recipe/detection/atss_mobilenetv2_tile.yaml            │
│ DETECTION │ atss_resnext101       │ src/otx/recipe/detection/atss_resnext101.yaml                  │
│ DETECTION │ atss_resnext101_tile  │ src/otx/recipe/detection/atss_resnext101_tile.yaml             │
│ DETECTION │ atss_mobilenetv2      │ src/otx/recipe/detection/atss_mobilenetv2.yaml                 │
└───────────┴───────────────────────┴────────────────────────────────────────────────────────────────┘

from otx.backend.native.cli.utils import list_models

model_lists = list_models(task="DETECTION", pattern="atss")
print(model_lists)
'''
[
    'atss_mobilenetv2',
    'atss_mobilenetv2_tile',
    'atss_resnext101',
    'atss_resnext101_tile',
]
'''

2. On this step we will configure configuration with:

  • all necessary configs for atss_mobilenetv2

  • train/validation sets, based on provided annotation.

It may be counterintuitive, but for --data_root we need to pass the path to the dataset folder root (in our case it’s data/wgisd) instead of the folder with validation images. This is because the function automatically detects annotations and images according to the expected folder structure we achieved above.

Let’s check the object detection configuration running the following command:

# or its config path
(otx) ...$ otx train --config  src/otx/recipe/detection/atss_mobilenetv2.yaml \
                     --data_root data/wgisd \
                     --work_dir otx-workspace \
                     --print_config

...
data_root: data/wgisd
work_dir: otx-workspace
callback_monitor: val/map_50
disable_infer_num_classes: false
engine:
  task: DETECTION
  device: auto
data:
...

Note

If you want to get configuration as yaml file, please use --print_config parameter and > configs.yaml.

(otx) ...$ otx train --config  src/otx/recipe/detection/atss_mobilenetv2.yaml --data_root data/wgisd --print_config > configs.yaml
# Update configs.yaml & Train configs.yaml
(otx) ...$ otx train --config configs.yaml

3. otx train trains a model (a particular model recipe) on a dataset and results:

Here are the main outputs can expect with CLI: - {work_dir}/{timestamp}/checkpoints/epoch_*.ckpt - a model checkpoint file. - {work_dir}/{timestamp}/configs.yaml - The configuration file used in the training can be reused to reproduce the training. - {work_dir}/.latest - The results of each of the most recently executed subcommands are soft-linked. This allows you to skip checkpoints and config file entry as a workspace.

(otx) ...$ otx train --data_root data/wgisd

(otx) ...$ otx train --config src/otx/recipe/detection/atss_mobilenetv2.yaml --data_root data/wgisd

from otx.backend.native.engine import OTXEngine

data_root = "data/wgisd"
recipe = "src/otx/recipe/detection/atss_mobilenetv2.yaml"

engine = OTXEngine.from_config(
          config_path=recipe,
          data_root=data_root,
          work_dir="otx-workspace",
        )

# it is also possible to pass a config as a model to the Engine directly
engine = OTXEngine(
          model=recipe,
          data=data_root,
          work_dir="otx-workspace",
        )

# one more possibility to obtain the right engine by the given model/dataset
from otx.engine import create_engine
engine = create_engine(
          model=recipe,
          data=data_root,
          work_dir="otx-workspace",
        )

engine.train(...)

from otx.backend.native.engine import OTXEngine
from otx.backend.native.models import ATSS

data_root = "data/wgisd"
model = ATSS(
            model_name="atss_mobilenetv2",
            label_info = {"label_names": ["Chardonnay", "Cabernet Franc", "Cabernet Sauvignon", "Sauvignon Blanc", "Syrah"],
                         "label_id": [0, 1, 2, 3, 4],
                         "label_groups": [["Chardonnay", "Cabernet Franc", "Cabernet Sauvignon", "Sauvignon Blanc", "Syrah"]]},
            data_input_params = {"input_size": [800, 992],
                                "mean": [0.0, 0.0, 0.0],
                                "std": [255.0, 255.0, 255.0]}
        )

engine = OTXEngine(
          model=model,
          data_root=data_root,
          work_dir="otx-workspace",
        )

# one more possibility to obtain the right engine by the given model/dataset
# using "create_engine" function
from otx.engine import create_engine
engine = create_engine(
          model=model,
          data=data_root,
          work_dir="otx-workspace",
        )

engine.train(...)

4. (Optional) Additionally, we can tune training parameters such as batch size, learning rate, patience epochs or warm-up iterations. Learn more about specific parameters using otx train --help -v or otx train --help -vv.

For example, to decrease the batch size to 4, fix the number of epochs to 100, extend the command line above with the following line.

(otx) ...$ otx train ... --data.train_subset.batch_size 4 \
                         --max_epochs 100

from otx.config.data import SubsetConfig
from otx.data.module import OTXDataModule
from otx.backend.native.engine import OTXEngine

datamodule = OTXDataModule(..., train_subset=SubsetConfig(..., batch_size=4))

engine = OTXEngine(..., datamodule=datamodule)

engine.train(max_epochs=100)

5. The training result checkpoints/*.ckpt file is located in {work_dir} folder, while training logs can be found in the {work_dir}/{timestamp} dir.

Note

We also can visualize the training using Tensorboard as these logs are located in {work_dir}/{timestamp}/tensorboard.

otx-workspace
├── 20240403_134256/
    ├── csv/
    ├── checkpoints/
    |   └── epoch_*.pth
    ├── tensorboard/
    └── configs.yaml
└── .latest
    └── train/
...

The training time highly relies on the hardware characteristics, for example on 1 NVIDIA GeForce RTX 3090 the training took about 3 minutes.

After that, we have the PyTorch object detection model trained with OpenVINO™ Training Extensions, which we can use for evaluation, export, optimization and deployment.

6. It is also possible to resume training from the last checkpoint. For this, we can use the --resume parameter with the path to the checkpoint file.

(otx) ...$ otx train --config src/otx/recipe/classification/multi_class_cls/mobilenet_v3_large.yaml \
                      --data_root data/flower_photos \
                      --checkpoint otx-workspace/20240403_134256/checkpoints/epoch_014.ckpt \
                      --resume True

engine.train(resume=True,
             checkpoint="otx-workspace/20240403_134256/checkpoints/epoch_014.ckpt")

Evaluation#

1. otx test runs evaluation of a trained model on a particular dataset.

Test function receives test annotation information and model snapshot, trained in previous step.

The default metric is mAP_50 measure.

2. That’s how we can evaluate the snapshot in otx-workspace folder on WGISD dataset and save results to otx-workspace:

(otx) ...$ otx test --work_dir otx-workspace
┏━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃        Test metric        ┃       DataLoader 0        ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│      test/data_time       │   0.025369757786393166    │
│       test/map_50         │    0.8693901896476746     │
│      test/iter_time       │    0.08180806040763855    │
└───────────────────────────┴───────────────────────────┘

(otx) ...$ otx test --config  src/otx/recipe/detection/atss_mobilenetv2.yaml \
                    --data_root data/wgisd \
                    --checkpoint otx-workspace/20240312_051135/checkpoints/epoch_033.ckpt
┏━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃        Test metric        ┃       DataLoader 0        ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│      test/data_time       │   0.025369757786393166    │
│       test/map_50         │    0.8693901896476746     │
│      test/iter_time       │    0.08180806040763855    │
└───────────────────────────┴───────────────────────────┘

engine.test()

3. The output of {work_dir}/{timestamp}/csv/version_0/metrics.csv consists of a dict with target metric name and its value.

The next tutorial on how to export, optimize, and deploy the model is available at Deploy & Demo.
